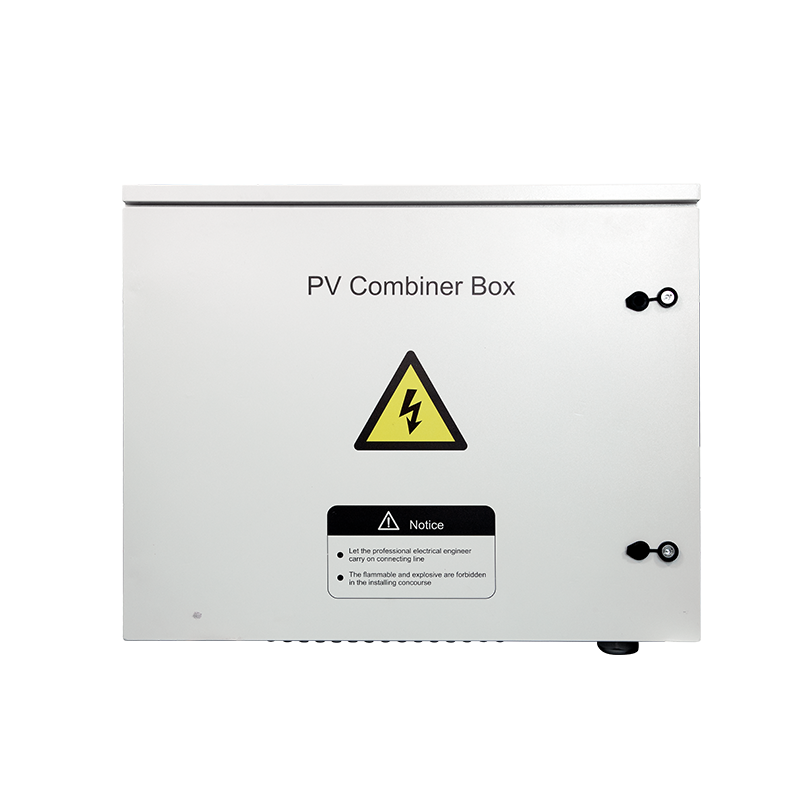

XLD-PV24-1 DC combiner box
Combiner boxes provide a means of combining multiple source circuits of a PV array into a single DC output. Each power circuit is individually fused by a touch-safe fuse holder. The combiner box allows the system to operate fail-safe in the unlikely event that the source circuit causes abnormally high currents. Additionally, combiner boxes provide a convenient way to access the DC portion of the PV system for routine maintenance and troubleshooting. Widely used in houses, solar farms, solar water pumping systems.
The box material can be metal material with cold-rolled steel plate.
The box material can be metal material with cold-rolled steel plate.
- Product Details
- Return
- Rated voltage
- 1500V
- Input current of each channel
- 15A
- Number of input channels
- 24
- Output switching current
- 200A
- Protection level
- IP65
- Output switch
- DC circuit breaker (standard)/isolating switch (optional)
