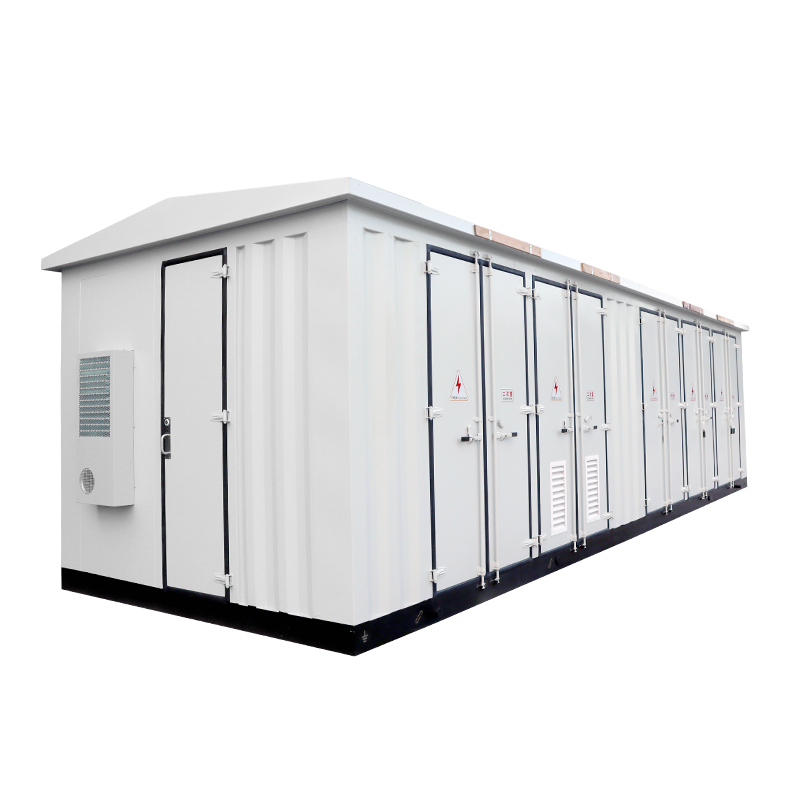

10kV~40.5kV modular intelligent prefabricated cabin
Provide a fully modular assembly solution for substations, reducing the floor space by 30% and shortening the system design, installation and commissioning cycle by 70%;
It adopts an all-metal prefabricated cabin and is equipped with an intelligent environmental control system, which can be applied to complex climate and geographical environments such as high temperature, high humidity, sand and dust;
Supports access to the eCloud energy cloud platform, provides remote health diagnosis, fault analysis, maintenance guidance and other functions to achieve unattended substations and full life cycle management of equipment;
All equipment in the substation adopts electric power brands, with reliable operation and guaranteed quality.
It adopts an all-metal prefabricated cabin and is equipped with an intelligent environmental control system, which can be applied to complex climate and geographical environments such as high temperature, high humidity, sand and dust;
Supports access to the eCloud energy cloud platform, provides remote health diagnosis, fault analysis, maintenance guidance and other functions to achieve unattended substations and full life cycle management of equipment;
All equipment in the substation adopts electric power brands, with reliable operation and guaranteed quality.
- Product Details
- Return
- Covered area
- Approximately 2000 square meters
- construction period
- The entire site is prefabricated, and all equipment is prefabricated in the factory and can be installed on site. The construction period is short, 1 to 2 months.
- Cable usage
- The equipment is highly integrated and arranged, the electrical distance is shortened, and about 30% of cables can be saved.
- Environmental requirements
- It adopts an all-metal cabin design, IP54 protection level, and is equipped with a complete HVAC system to prevent wind, sand and condensation, improving equipment reliability.
- Construction and management costs
- Prefabricated design eliminates buildings in the entire site, resulting in low construction costs; all equipment is provided by Mindian Electric, which is responsible for all installation and debugging work, resulting in low management costs
- Operation and maintenance costs
- Closed design, basically not affected by external conditions such as environment, low operation and maintenance costs
