The altitude does not exceed 1000m;
Ambient temperature: -35℃~+40℃;
Relative humidity: the daily average value is not greater than 95%, and the monthly average value is not greater than 90%;
Installation location: A place free of fire, explosion hazards, chemically corrosive gases and well-ventilated. The ground inclination angle is not greater than 3°.
Location:
Prefabricated Substation Series
- Photovoltaic Grid-Connected Series
- Low-Voltage Switchgear Series
- High-Voltage Switchgear Series
- Ring Main Unit, Gas-Fired Switchgear, Solid-State Switchgear Series
- Prefabricated Substation Series
- Outdoor Vacuum Circuit Breaker Series
- Indoor Vacuum Circuit Breaker Series
- Power Transformer Series
- Distribution Box Series
- Cable Branch Box
Prefabricated Substation Series
Product Center
- Photovoltaic Grid-Connected Series
- Low-Voltage Switchgear Series
- High-Voltage Switchgear Series
- Ring Main Unit, Gas-Fired Switchgear, Solid-State Switchgear Series
- Prefabricated Substation Series
- Outdoor Vacuum Circuit Breaker Series
- Indoor Vacuum Circuit Breaker Series
- Power Transformer Series
- Distribution Box Series
- Cable Branch Box

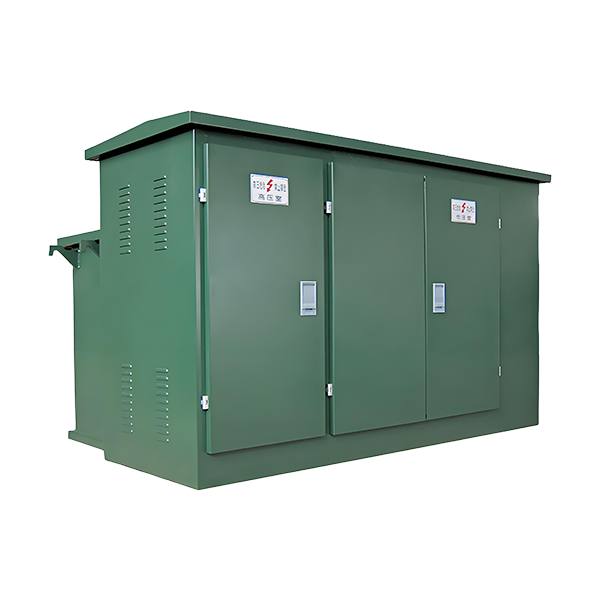

American box transformer
This product is developed by absorbing foreign technology and combining it with domestic actual conditions. The entire product has the characteristics of small size, easy installation and maintenance, low noise, low loss, anti-theft, strong overload capacity, and full protection. It is suitable for new residential areas, green belts, parks, station hotels, construction sites, airports and other places.
ZBM prefabricated substation (American box substation) is suitable for 10KV ring network power supply, dual power supply or terminal power supply system, as a power transformation, metering, compensation control and protection device.
ZBM prefabricated substation (American box substation) is suitable for 10KV ring network power supply, dual power supply or terminal power supply system, as a power transformation, metering, compensation control and protection device.
- Product Details
- Return
Model and its meaning
normal usage conditions
Functions and features
Fully insulated, fully sealed, free of maintenance, and reliable to ensure personal safety; compact structure, volume only 1/3-1/5 of the European transformer of the same capacity, low height; can adopt a sub-box structure to avoid oil contamination in the transformer tank; high-voltage side adopts double fuse full range protection, greatly reducing costs: it can be used for both ring network and terminal, and the cable head can be tightened at 200A load current
Main technical parameters
Technical parameter table of prefabricated substation
| serial number | name | unit | Technical parameters |
| 1 | Rated voltage | kV | 10/0.4(high pressure/low pressure) |
| 2 | Maximum working voltage | kV | 12(high voltage side) |
| 3 | Rated frequency | Hz | 50 |
| 4 | Rated capacity | kVA | 50-1600 |
| 5 | 1 minute power frequency withstand voltage | kV | 35 |
| 6 | Lightning impulse voltage | kV | 75 |
| 7 | Cooling method | Oil immersed self-cooling | |
| 8 | High voltage backup fuse breaking current | kA | 50 |
| 9 | Plug-in fuse breaks current | kA | 2.5 |
| 10 | ambient temperature | ℃ | -35-+40 |
| 11 | Coil allowable temperature rise | K | 65 |
| 12 | No load voltage regulation | ±5% or ±2×2.5% | |
| 13 | Noise level | dB | 50 |
| 14 | Protection level | IP43 |
Transformer technical parameter table
Use the new S9 series transformer body, which has low loss, good overload capacity, and strong short-circuit resistance. All fasteners have been anti-loosened, eliminating the need for hanging cores; you can also choose S10 series and S11 series transformers with better performance
| CapacityKVA | VoltagekV | join group label |
No-load current% | No-load current% | Impedance Voltage % | S9 | S10 | S11 | |||||
| high pressure | low pressure | S9 | S10 | S11 | S9 | S9 | S11 | ||||||
| 50 | 10±5% or ±2×2.5% |
0.4 | Dyn11 or Yyn0 |
2.0 | 1.9 | 0.75 | 0.17 | 0.15 | 0.12 | 0.87 | 0.83 | 0.87 | |
| 63 | 1.9 | 1.8 | 0.7 | 0.2 | 0.18 | 0.14 | 1.04 | 0.99 | 1.04 | ||||
| 80 | 1.9 | 1.7 | 0.7 | 0.25 | 0.22 | 0.175 | 1.25 | 1.2 | 1.25 | ||||
| 100 | 1.8 | 1.55 | 0.65 | 0.29 | 0.26 | 0.2 | 1.5 | 1.42 | 1.5 | ||||
| 125 | 1.7 | 1.45 | 0.65 | 0.34 | 0.3 | 0.235 | 4.0 | 1.8 | 1.72 | 1.8 | |||
| 160 | 1.6 | 1.3 | 0.6 | 0.4 | 0.36 | 0.27 | 2.2 | 2.12 | 2.2 | ||||
| 200 | 1.5 | 1.2 | 0.55 | 0.48 | 0.43 | 0.33 | 2.6 | 2.5 | 2.6 | ||||
| 250 | 1.4 | 1.1 | 0.5 | 0.56 | 0.5 | 0.39 | 3.05 | 2.9 | 3.05 | ||||
| 315 | 1.4 | 1.0 | 0.45 | 0.67 | 0.29 | 0.465 | 3.65 | 3.45 | 3.65 | ||||
| 400 | 1.3 | 1.0 | 0.4 | 0.8 | 0.71 | 0.56 | 4.3 | 4.15 | 4.3 | ||||
| 500 | 1.2 | 1.0 | 0.4 | 0.96 | 0.85 | 0.67 | 5.15 | 4.82 | 5.15 | ||||
| 630 | 1.1 | 0.8 | 0.4 | 1.2 | 1.6 | 0.81 | 6.2 | 5.86 | 6.2 | ||||
| 800 | 1.0 | 0.7 | 0.35 | 1.4 | 1.23 | 0.98 | 7.5 | 7.2 | 7.5 | ||||
| 1000 | 1.0 | 0.6 | 0.3 | 1.7 | 1.5 | 1.15 | 4.5 | 10.3 | 9.8 | 10.3 | |||
| 1250 | 0.9 | 0.6 | 0.27 | 1.95 | 1.72 | 1.36 | 12.0 | 12.2 | 12.0 | ||||
Load switch technical parameter table
The load switch is an oil-immersed, three-phase linkage switch, spring operating mechanism; it can open and close with load, and its opening and closing speed has nothing to do with the operating force. There are two-station, four-station T-type, four-station V-type, etc. to choose from.
