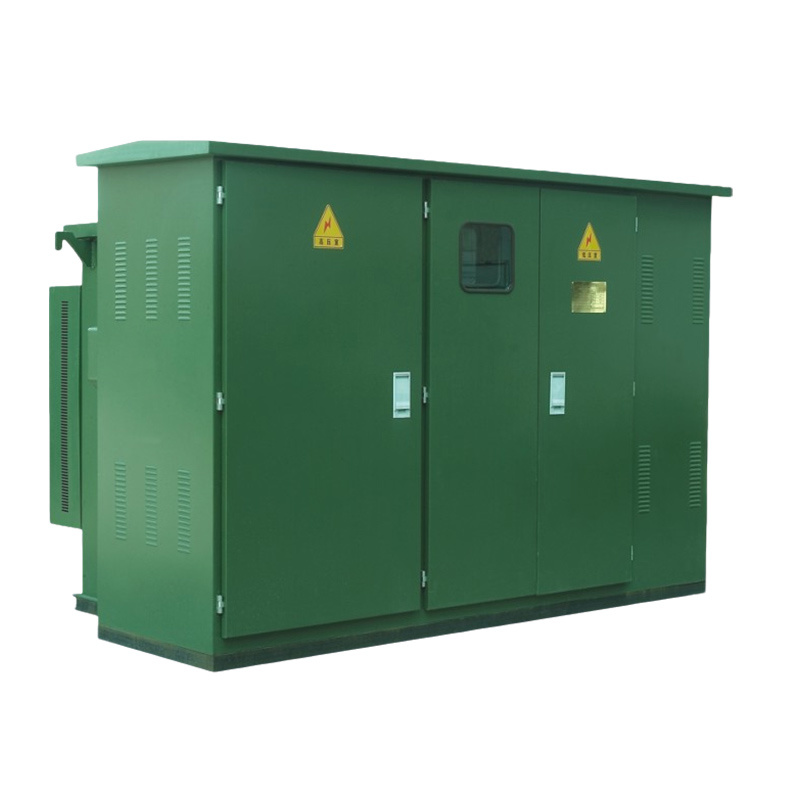

YBM-12 prefabricated substation (American box substation)

If you have any questions, please contact us!

Product Details
Return

Product introduction

YBM series prefabricated substation (American box transformer), also called combined transformer, commonly known as American box transformer, is a new product designed and developed by digesting and absorbing foreign design concepts and combining the requirements of my country's urban and rural distribution networks.

Model meaning

Structural features

The prefabricated substation is divided into front and rear parts.

Technical parameters

Product model	Rated capacity(kVA)	voltage combination			association group label	No-load loss (kW)	Load loss(kW)	No-load current(%)	Short circuit impedance(%)	Total weight(kg)	Overall reference dimensions (length×width×height, mm)
Product model	Rated capacity(kVA)	High voltage kV	Tap range	Low voltagekV	association group label	No-load loss (kW)	Load loss(kW)	No-load current(%)	Short circuit impedance(%)	Total weight(kg)	Overall reference dimensions (length×width×height, mm)
YBM-100-4-100	100	6 6.3 10 10.5 11	±5% ±2×2.5%	0.4	DYN11 YYN0	290	1500	1.6	4	1240	1880×1350×1740
YBM-100-4-125	125					340	1800	1.5		1345	1880×1350×1740
YBM-100-4-160	160					400	2200	1.4		1460	1880×1380×1740
YBM-100-4-200	200					480	2600	1.3		1545	1880×1380×1740
YBM-100-4-250	250					560	3050	1.2		1646	1880×1380×1740
YBM-100-4-315	315					670	3650	1.1		1840	1880×1410×1740
YBM-100-4-400	400					800	4300	1.0		2180	1880×1445×1800
YBM-100-4-500	500					960	5100	1.0		2410	1880×1450×1800
YBM-100-4-630	630					1200	6200	0.9	4.5	3380	1880×1455×1800
YBM-100-4-800	800					1400	7500	0.8		3800	1880×1500×1800
YBM-100-4-1000	1000					1700	10300	0.7		4270	1880×1530×1800
YBM-100-4-1250	1250					1950	12000	0.6		5100	1880×1560×1980
YBM-100-4-1600	1600					2400	14500	0.6		5400	1880×1600×1980
