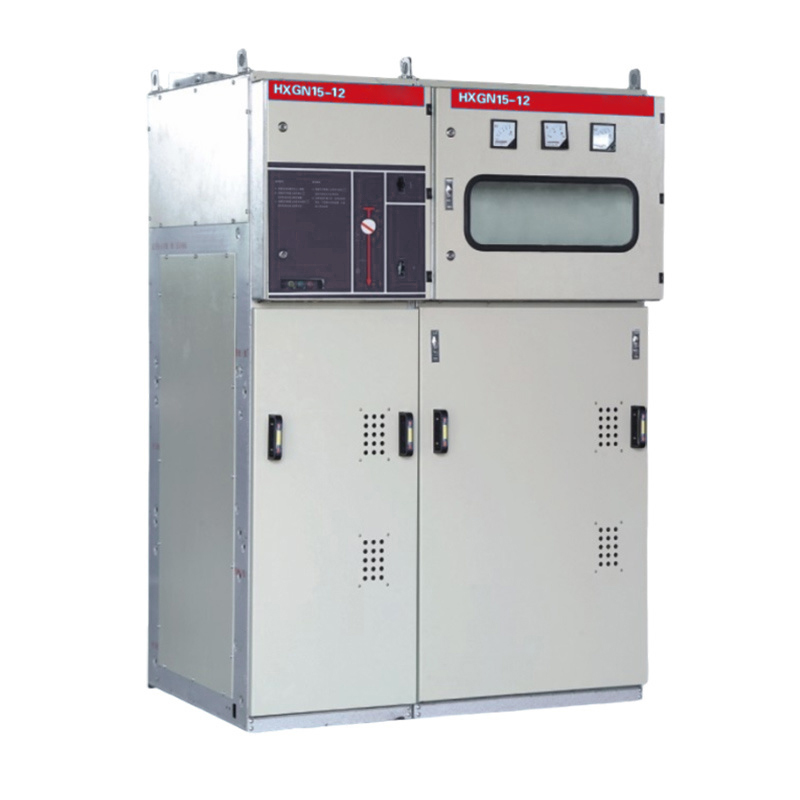

HXGN15-12 box type fixed AC metal switchgear

This product is a new generation of high-voltage electrical product that our company has introduced and successfully designed and developed in accordance with the requirements of domestic rural power grid and urban power grid transformation. After strict type testing and long-term operation assessment.

Product Details
Return

Product introduction

The cabinet is made of imported aluminum-zinc-coated plates and riveted by CNC machine tools. The protection level reaches IP3X and has reliable mechanical interlocking and misoperation prevention functions.

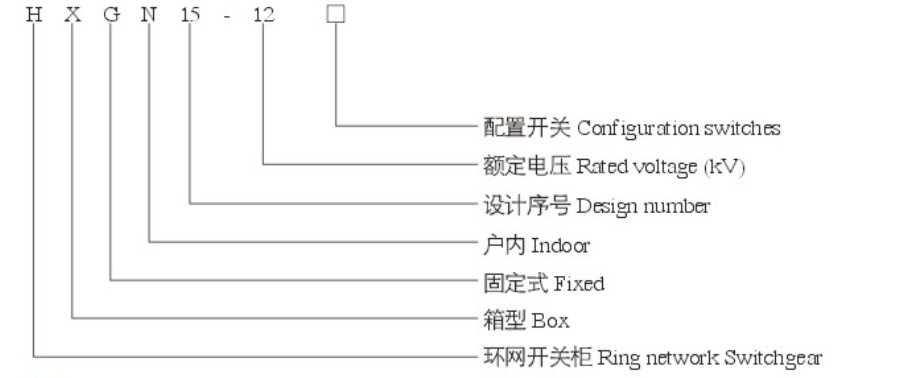

Model meaning

Technical parameters

project		unit	data
Rated voltage		kV	12
Rated lightning impulse withstand voltage	alternately and relatively	kV	75
Rated lightning impulse withstand voltage	between fractures	kV	85
One minute power frequency withstand voltage	alternately and relatively	kV	42
One minute power frequency withstand voltage	between fractures	kV	48
Rated frequency		Hz	50/60
Rated current	main bus	A	630
Rated current	branch bus	A	630
Rated short-time withstand current	main circuit	kA	20/3s
Rated short-time withstand current	ground loop	kA	20/2s
Rated peak withstand current		kA	50
Protection level			IP2X
Load switch mechanical life		time	20000
Grounding switch mechanical life		time	20000

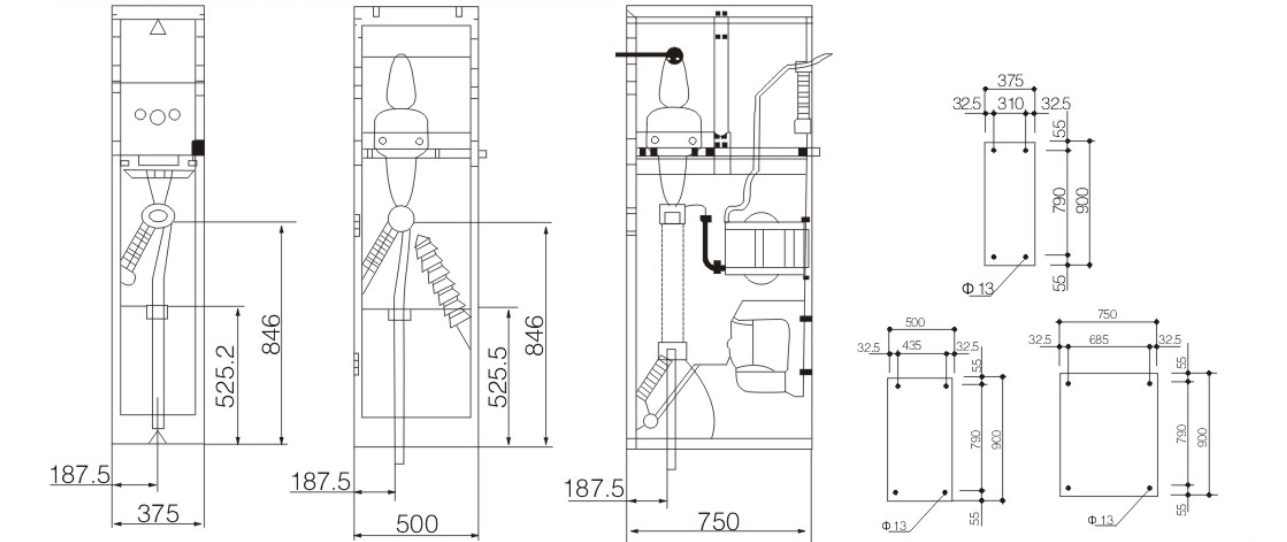

Load switch cabinet	Cabinet width	mm	375, 500, 750
	Cabinet depth	mm	917, 940
	Cabinet height	mm	1635, 1885
low pressure room	high	mm	350, 450
Circuit breaker cabinet	Cabinet width	mm	750, 800
	Cabinet depth	mm	917, 940, 1245
	Cabinet height	mm	1885
