Anhui Mingge Electric Co., Ltd.

1. Overview

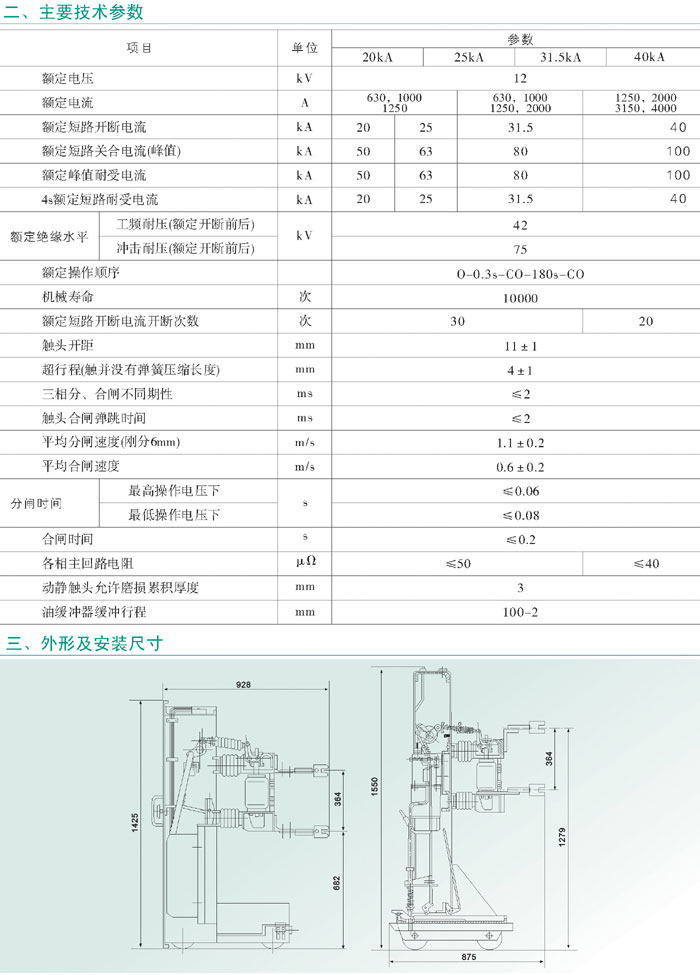

KYN1-12 and JYN2-12 removable AC metal-enclosed switch cabinet series handcarts are three-phase AC 50Hz indoor devices. In addition to being used as distribution circuit breakers in power distribution systems, they are also suitable for controlling and protecting current transformers, high-voltage motors, switching capacitor banks and other places with frequent operations.

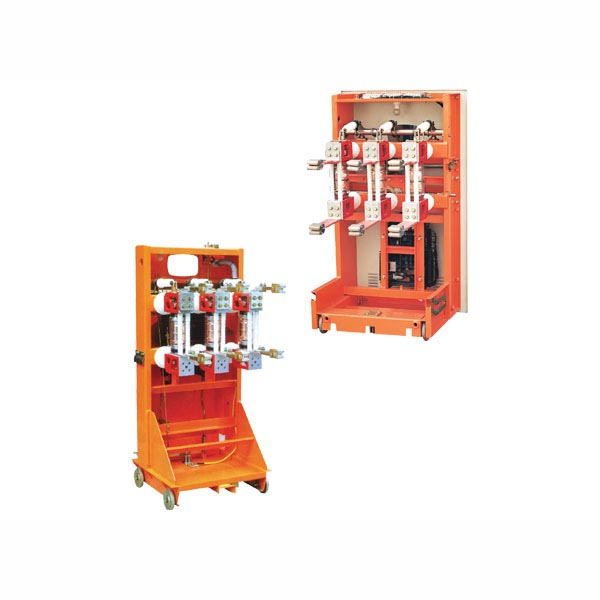

The handcart is one of the core components of the switch. It is made of bent and welded steel plates. The bottom is equipped with four rollers that can move in the horizontal direction. It is also equipped with a grounding contact, a guide device, a locking mechanism and a manual mechanical device for entering and exiting the handcart.
There are seven types of handcarts: circuit breaker handcart, voltage transformer handcart, voltage transformer arrester handcart, transformer handcart, isolation handcart and grounding handcart.
