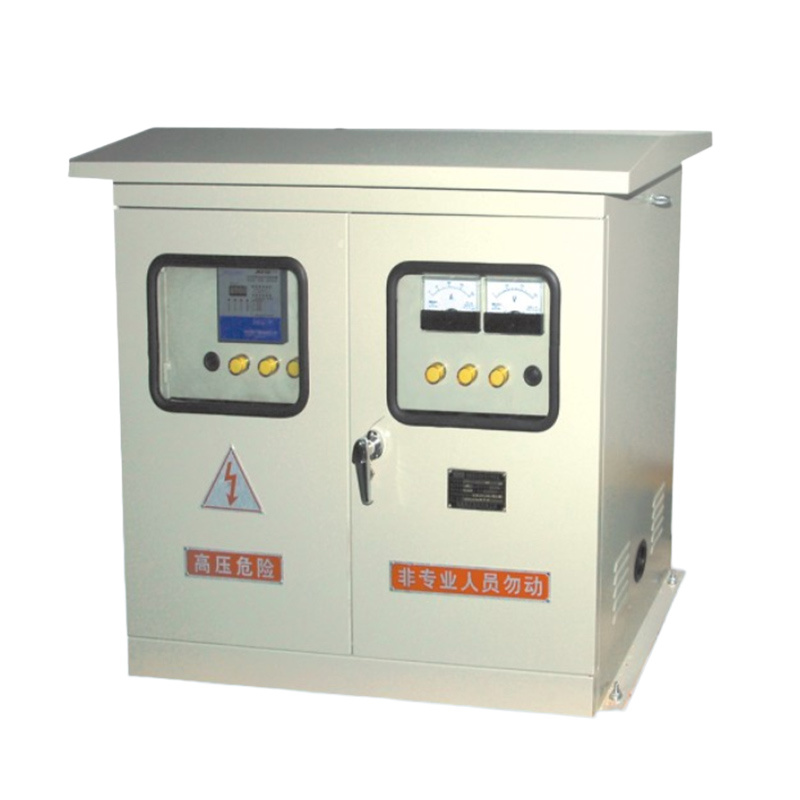

GGJ low voltage reactive power compensation complete device

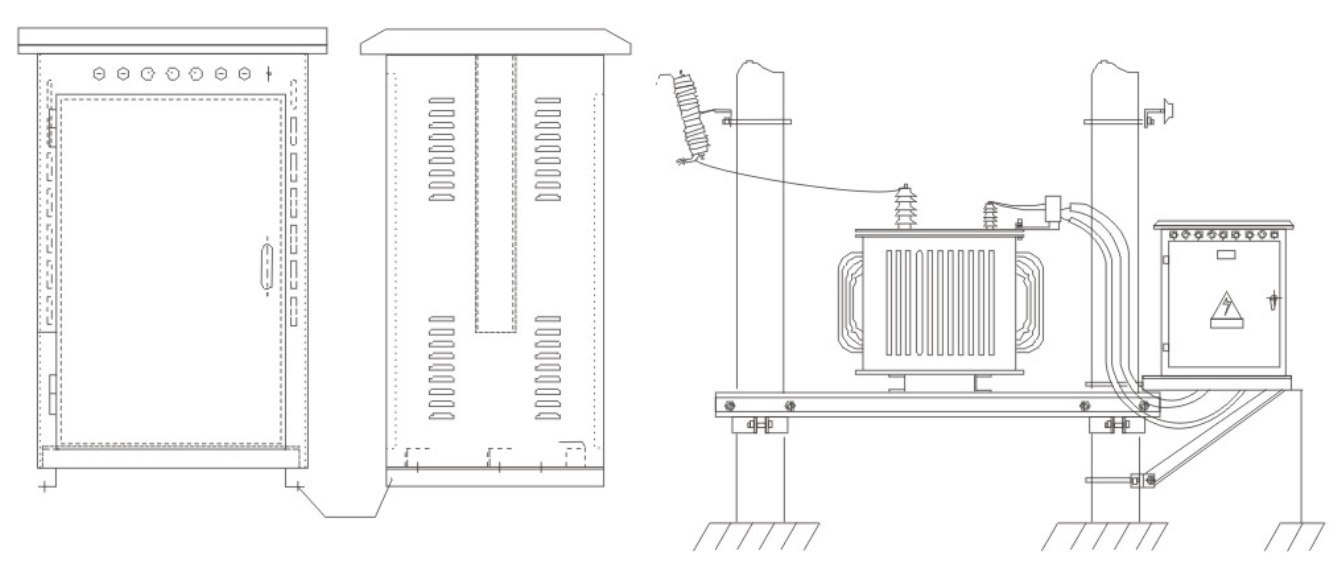

The GGJ series low-voltage reactive power split-phase compensation complete set (hereinafter referred to as the device) is a reactive power compensation device installed on the transformer side or next to the load to compensate the reactive power consumed by the load carried by the transformer for the three-phase unbalanced load. The device is divided into two structures: column-mounted type and floor-mounted type.

Product Details
Return

Product introduction

The GGJ series low-voltage split-phase reactive power compensation complete device is designed and manufactured in accordance with the machinery industry standard \"Low-voltage parallel capacitor device\" (JB7113-93).

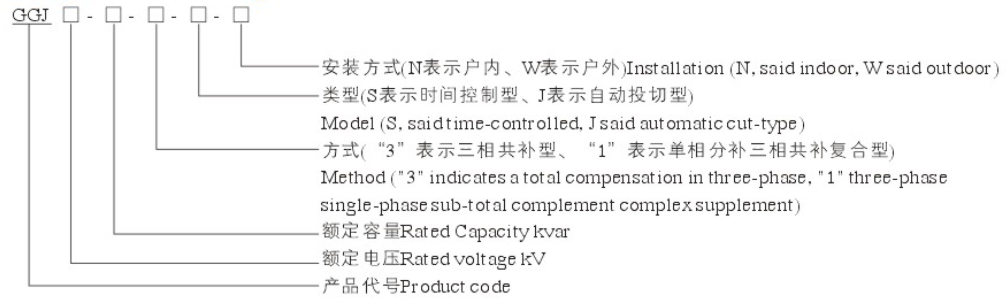

Model meaning

Technical parameters

project	unit	data	project	unit	data
Voltage measurement accuracy	class	0.5	Current measurement accuracy	class	0.5
Power factor measurement accuracy	class	1.0	Power energy measurement accuracy	class	1.0
time error	seconds/day	<1	Data sampling measurements		true valid value
Maximum output circuit	road	13	Control method		Manual automatic
Controlling physical quantities		Reactive power	Entry and exit thresholds		0~84A, configurable
switching method			Automatic cycle switching
Compensation method			Hybrid compensation method that combines three-phase compensation and split-phase compensation (The compensation methods and control parameters of each group can be set in groups)
Communication method			Infrared digital transmission
Carrier center frequency			100
Power consumption			≤15
Transfer baud rate to digital collector			1200/2400/4800
Data collector and computer communication baud rate			2400/4800/9600/19200/38400
Data storage capacity - number of days of data storage			60
Data storage capacity - switching history			608
