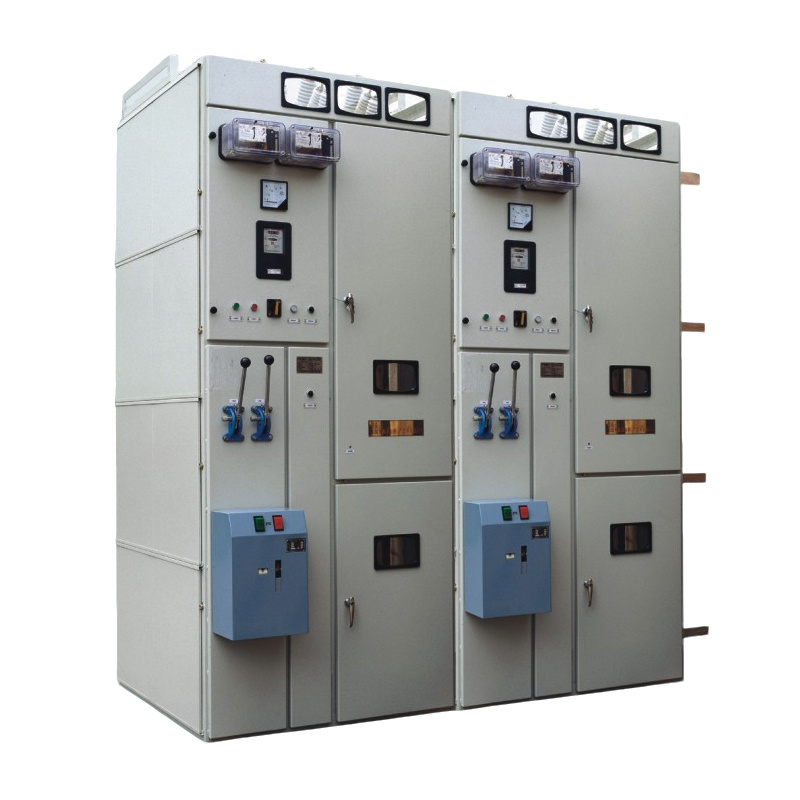

GG-1A(F) fixed indoor AC metal enclosed switchgear

GG-1A(F) fixed indoor AC metal-enclosed switchgear (hereinafter referred to as "switchgear") is suitable for receiving and distributing electric energy in three-phase AC single bus and single bus bypass systems with a rated voltage of 3 to 10kV and a rated frequency of 50Hz.

Product Details
Return

Product introduction

GG-1A(F) fixed indoor AC metal-enclosed switchgear (hereinafter referred to as \"switchgear\") is suitable for receiving and distributing electric energy in three-phase AC single bus and single bus bypass systems with a rated voltage of 3 to 10kV and a rated frequency of 50Hz.

The main switch in the switchgear can be equipped with ZN28(A) series vacuum circuit breaker according to user needs.

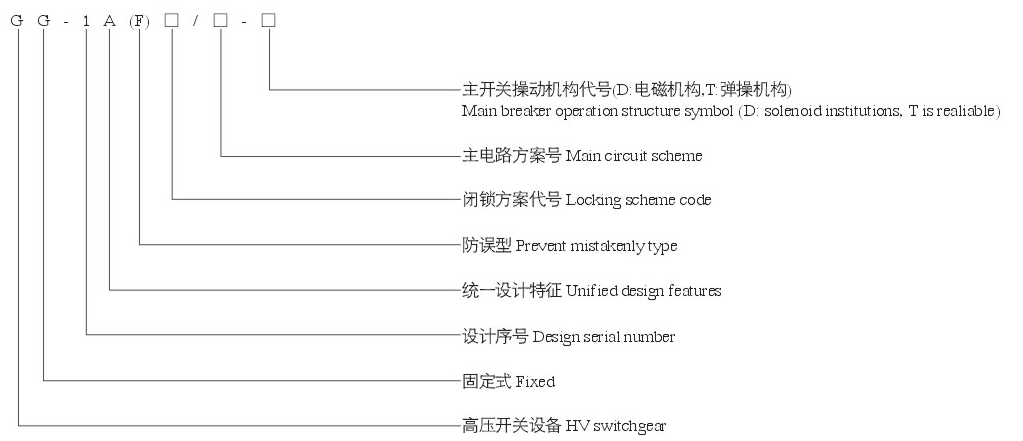

Model meaning

Technical parameters

project	unit	data
Rated voltage	V	3.6、7.2、12
Rated current	A	630-3150
Rated short circuit breaking current	kA	20、25、31.5、40
Rated short-time withstand current	kA	20、25、31.5、40
Rated peak withstand current	kA	50、63、80、100
Rated short circuit making current	kA	50、63、80、100
Rated short circuit duration	s	4
busbar system		Single busbar or single busbar with bypass system

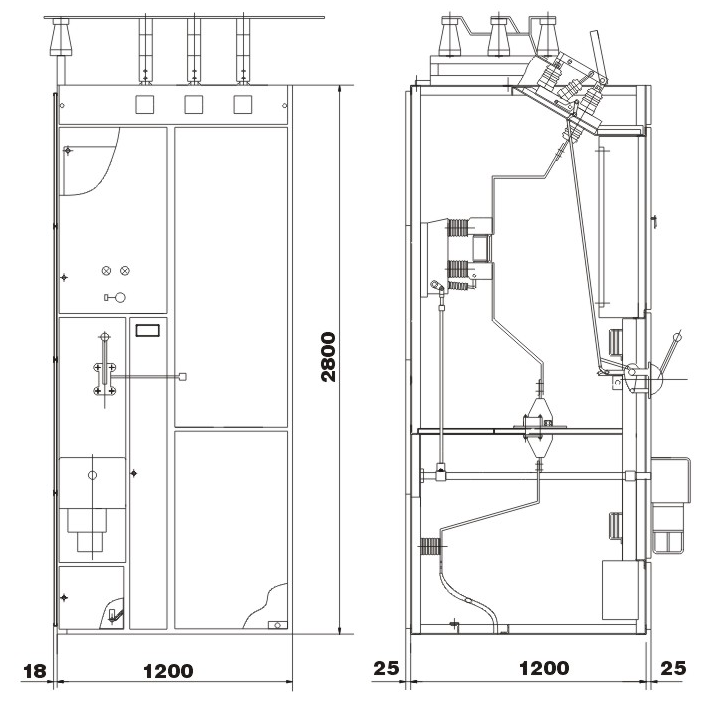

Overall dimensions (width W × depth L × height H)	mm	1200×1200(1800)×2800
