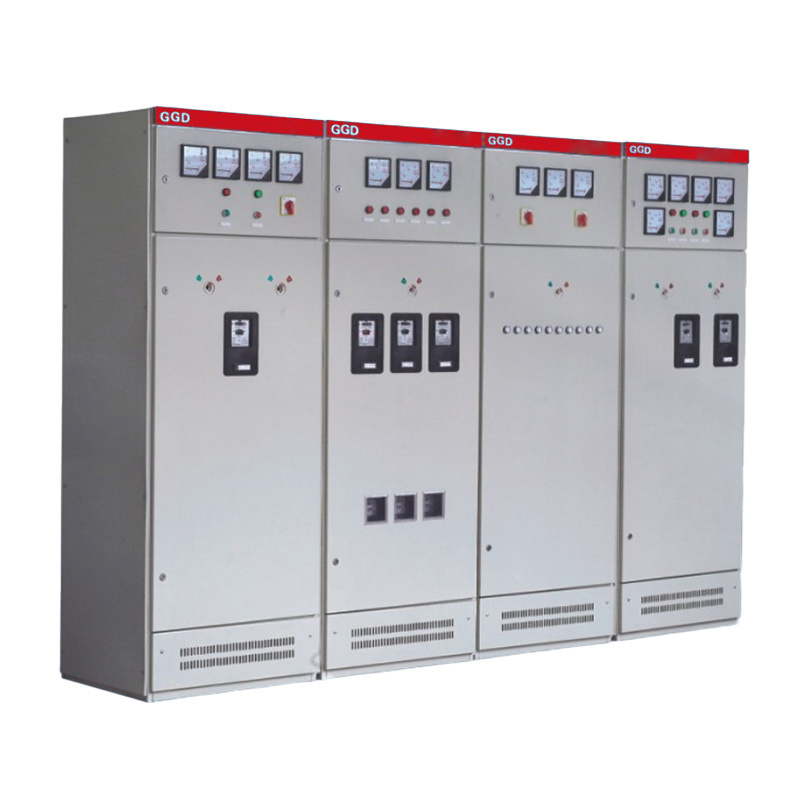

GGD low voltage fixed complete switchgear

The MBS (MNS) system is a product that introduces Swiss manufacturing technology. It is a factory-assembled low-voltage switchgear device.

Product Details
Return

Product introduction

GGD type AC low-voltage distribution cabinet is suitable for AC 50Hz distribution systems with rated operating current up to 3150A for power users such as power plants, substations, factories and mining enterprises, and is used for power conversion, distribution and control of power, lighting and distribution equipment.

Structural features

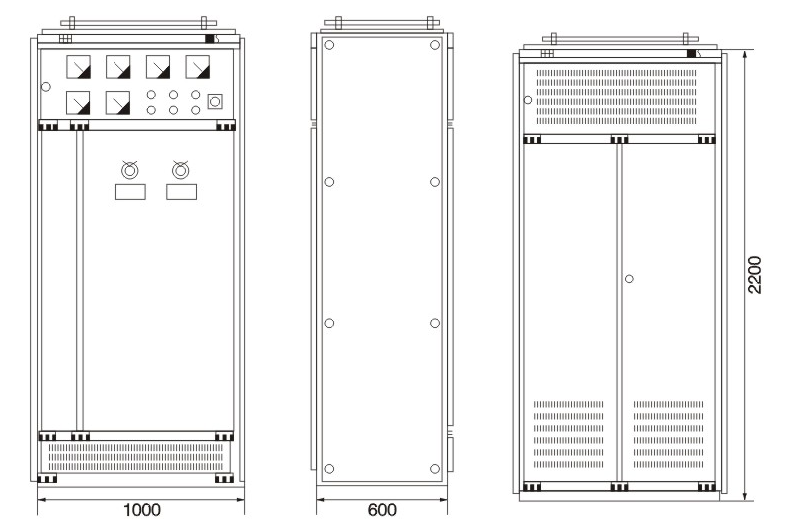

1 The cabinet body of the GGD type AC low-voltage distribution cabinet adopts the form of a general cabinet. The frame is made of partially welded 8MF cold-formed steel. The frame parts and special supporting parts are supplied by the designated steel manufacturer to ensure the accuracy and quality of the cabinet body.

2 The design of GGD cabinet takes full consideration of the heat dissipation problem during cabinet operation.

3. The cabinet door is connected to the frame with a rotating shaft-type movable hinge, which is easy to install and disassemble. A mountain-shaped rubber plastic strip is embedded in the folded edge of the door. When the door is closed, the strip between the frame and the frame has a certain compression stroke, which can prevent the door from directly colliding with the cabinet body, and also improves the door's protection level.

4. The instrument door equipped with electrical components is connected to the frame with multiple strands of soft copper wire, and the entire cabinet forms a complete grounding protection circuit.

5. The cabinet surface paint is made of polyester orange baking paint, which has strong adhesion and good texture.

Technical parameters

project		unit	GGD1		GGD1		GGD1
Rated working voltage	Main circuit	V	380	690	380	690	380	690
Rated working voltage	Auxiliary current	V	220	220	220	220	220	220
Rated insulation voltage		V	660	1000	660	1000	660	1000
Rated frequency		Hz	50	60	50	60	50	60
Horizontal bus rated current		A	1000(A) 600(630)(B)	400©	1000(A) 600(630)(B)	400©	1000(A) 600(630)(B)	400©
Rated short circuit breaking current		kA	15	15	15	15	15	15
Rated short-time withstand current		kA	15	15	15	15	15	15
Rated peak withstand current		kA	30	30	30	30	30	30
