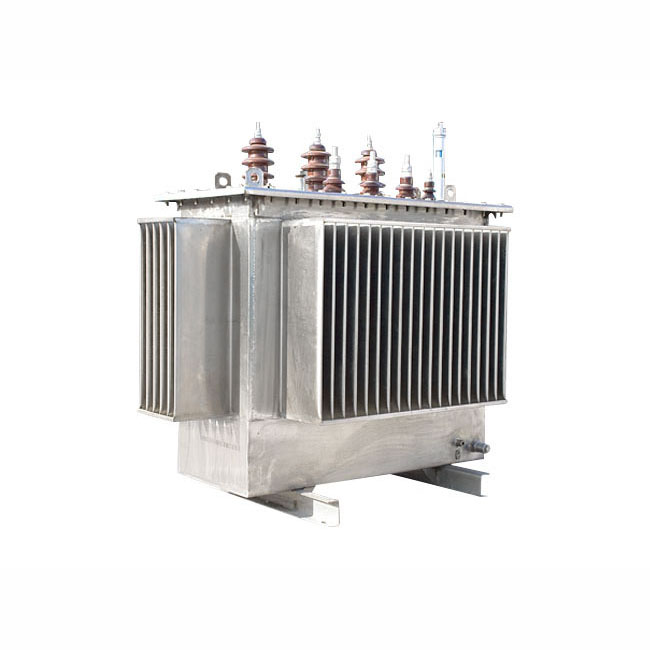

S9-M-30~2500/10KV three-phase oil-immersed fully sealed power transformer
If you have any questions, please contact us!
- Product Details
- Return
1. Purpose
S9-M-30~2500/10kV three-phase oil-immersed fully sealed power transformer is suitable for use in 10kV, 50Hz power transmission and distribution systems, and can be used for residential areas, commercial streets, industrial and mining enterprises and rural power lighting.
2. Product features
1. Energy saving
The no-load loss is reduced by 5% to 25% compared with the current standard, with an average reduction of 10.25%, the no-load current is reduced by 37.9%, and the operating cost is reduced by an average of 18.9%.
2. Long service life
The transformer oil tank adopts a fully sealed structure. The oil tank and the edge of the tank can be connected with bolts or welded together. The transformer oil does not come into contact with the air to extend its service life.
3. High operational reliability
The relevant parts of the fuel tank seal have been improved to increase reliability, and the process level has been improved to ensure the reliability of the seal.
4. Small footprint
The S9-M transformer oil tank adopts a corrugated plate radiator. When the oil temperature changes, the corrugated thermal expansion and contraction can replace the role of the oil conservator. The corrugated plate oil tank has a beautiful appearance and a small footprint.
