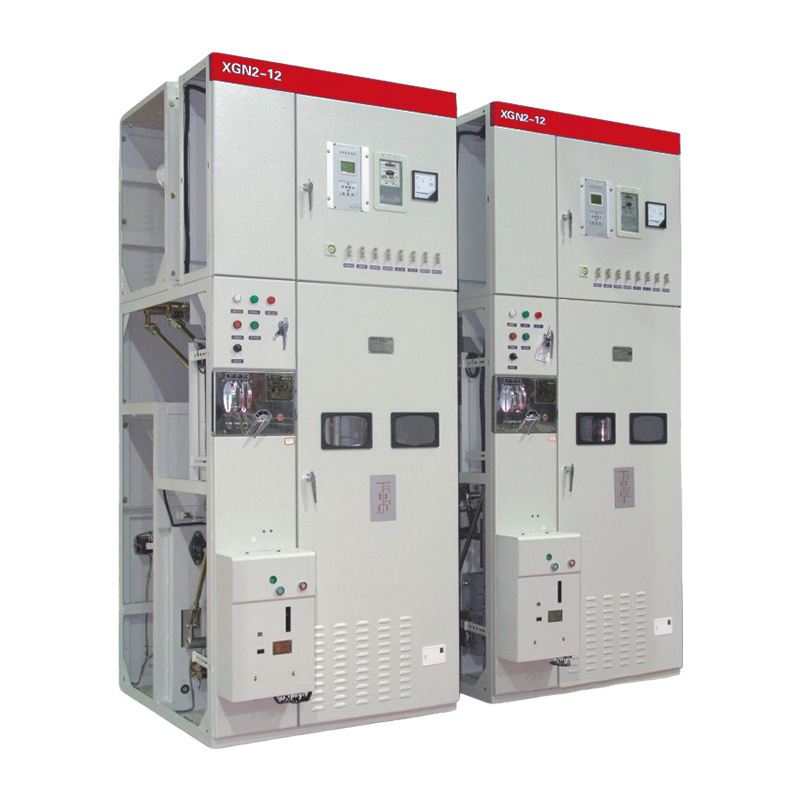

XGN2-12(Z) box type fixed metal enclosed switchgear
This product is suitable for receiving and distributing electric energy in 3-10kV three-phase AC 50Hz system. It is especially suitable for frequent operation occasions. The busbar system is a single busbar, and single busbar with bypass and double busbar structures can be derived.
- Product Details
- Return
Product introduction
This product is suitable for receiving and distributing electric energy in 3-10kV three-phase AC 50Hz system. It is especially suitable for frequent operation occasions. The busbar system is a single busbar, and single busbar with bypass and double busbar structures can be derived.
This switch cabinet has two \"five prevention\" locking functions.
Model meaning
Technical parameters
| project | unit | data |
| Rated voltage | kV | 3.6、7.2、12 |
| Rated current | A | 630～2500 |
| Maximum working current | A | 630、1000、1250、2000、2500、3150 |
| Rated breaking current | kA | 20、31.5、40 |
| Rated thermal stable current | kA | 20、31.5、40 |
| Rated dynamic stable current | kA | 50、80、100 |
| Rated closing current | kA | 50、80、100 |
| Thermal stabilization time | s | 4 |
| Protection level | IP2X | |
| Bus level | Single busbar/single busbar with bypass double busbar | |
| Operation mode | Electromagnetic type (CD17)/spring energy storage type (CT8, CT17, CT19B) | |
| Overall dimensions (width × depth × height) | mm | 1100×1200×2650 |
| weight | kg | Below 1000 |
Appearance and installation dimensions
